FS4M

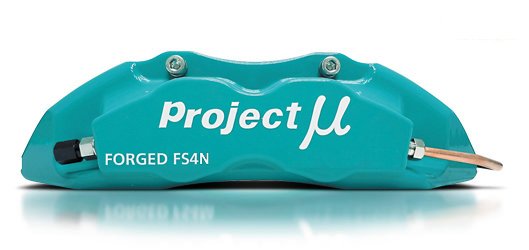

FORGED SPORTS 4Pistons x 4Pads SLIM

FS4N can be fitted with 17-inch wheels by using any rotor with a diameter of about Φ 300. A high quality MADE IN JAPAN one-piece rotor at a low price is standard. A lightweight two-piece rotor is also available.
Total length : 275mm / Total width : 136mm ※ / Total height :71.6mm
※Excludes the protrusion of the brake line attachment section.

  • 鍛造製法
Materials, production methods Aluminium alloy/Forged
Surface finishing Hard alumite with powder coating
Piston diameter 38mm
Rotor dimensions 300mm~
No. of pads 2Pads/1Caliper

※ NS-C pads are included as standard. Other pads are also available.

※When mounting, you must machine the genuine disc back plate.

Japanese cars Matching List


For Domestic cars

■CALIPER KIT
Calliper, Calliper Bracket, Brake Pad, Brake Rotor,
Teflon Brake line, All bolts

CAR MODEL ROTOR PARTS No. PRICE
RX-8 SE3P F 323×24mm 1PIECE Round /
Six slits
FS4N-Z102SP ¥294,800
(¥268,000 Excluding tax)
2PIECE Straight /
Eight slits
FS4N-Z102GP[*1] ¥343,200
(¥312,000 Excluding tax)

[*1] The Bell housing is 1.0mm thicker than the 1pc rotor product therefore an extra 1.0mm of wheel offset is needed.
Changed from a one-sided floating caliper on the front to an opposing 4-pot caliper (genuine rotor size Φ323t 24 mm).
The F4SN-Z102SP caliper kit uses the RX-8 (TYPE-S/RS) SCP PURE PLUS 6 rotor (part number: SPPZ106S6) for its components.
The F4SN-Z102GP caliper kit uses RX-8 (TYPE-S/RS) SCP PRO rotor (part number: GPRZ025) for its components.


CAR MODEL ROTOR PARTS No. PRICE
SWIFT
SPORT
ZC33S F 300×254mm 1PIECE Round /
Six slits
FS4N-S305SP ¥294,800
(¥268,000 Excluding tax)
2PIECE Straight /
Eight slits
FS4N-S305GP[*1] ¥332,200
(¥302,000 Excluding tax)

[*1] The Bell housing is 1.0mm thicker than the 1pc rotor product therefore an extra 1.0mm of wheel offset is needed.

Product specifications, prices, manufacture and sales are subject to change or termination without notice.
