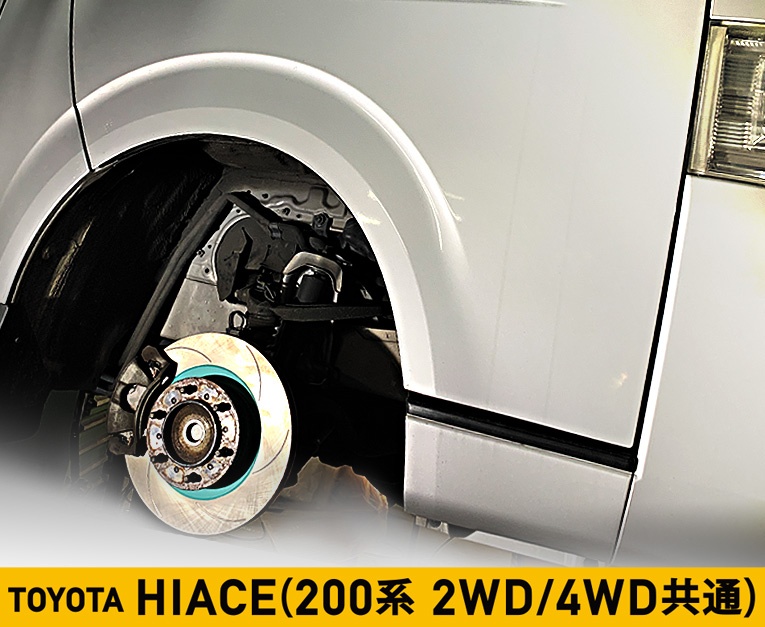

This set includes a bracket that allows installation without changing the offset, using the original caliper and brake lines, dedicated brake pads, and a dedicated large-diameter one-piece rotor. It can be installed on wheels with a diameter of 17 inches or larger. (Note: Some wheel designs may not be compatible.) The brake pads are TYPE PS, which have excellent control performance and are equipped as standard with a dedicated part number.
- 車検対応品
- 特殊熱処理済
- 耐熱塗装600℃
- ラウンド6スリット
| Structure | 1Piece |
| Material | Disk：FC cast iron Bracket: steel |
| Slit | Round / Six slits per side; twelve on both sides |
| MODEL | TOYOTA HIACE 200系（2WD/4WD） |
| VEHICLE TYPE | KDH200/KDH201/KDH205/KDH206 KDH211/KDH220/KDH221/KDH222 KDH223/KDH225/KDH227B/K/V TRH200/TRH211/TRH216/TRH221 TRH223/TRH226/TRH228B/TRH228K/TRH228V |
| PRODUCT CODE (COLOR) | BRK-F33028-H201（GREEN） |
| PRICE | ¥107,800（¥98,000 Excluding tax） |
| DIMENSIONAL DRAWING | DIMENSIONAL DRAWING |
| NOTE | ∅330-28㎜, Piece rotor, 6-Round slit |
Product specifications, prices, manufacture and sales are subject to change or termination without notice.
