FORGED SPORTS 4Pistons x 4Pads SIDE-B

FORGED SPORTS 4Pistons x 4Pads SIDE-B

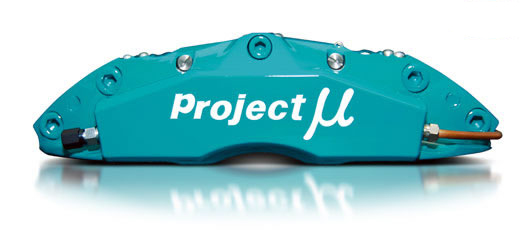

FS44R Caliper is designed to increase stopping power with front-rear balance in consideration.
Total length : 282.8mm / Total width :156.25mm ※ / Total height : 72.3mm
※Excludes the protrusion of the brake line attachment section.

  • リア専用タイプ
  • 鍛造製法
Materials, production methods Aluminium alloy/Forged
Surface finishing Hard alumite with powder coating
Piston diameter 38mm
Rotor dimensions 345mm×32mm
No. of pads 4Pads / 1Caliper
REAR ¥437,800
(¥398,000 Excluding tax)

※ NS-C pads are included as standard. Other pads are also available.
※When installing this system, the genuine side brake (in-drum type) is limited to use as a parking brake. Please note that you cannot use the genuine handbrake while driving.

※When mounting, you must machine the genuine disc back plate.

Japanese cars Matching List

■CALIPER KIT
Calliper, Calliper Steel Bracket, Brake Pad, 2Piece Rotor, Teflon Brake line, Pad Support Spring, All bolts



Product specifications, prices, manufacture and sales are subject to change or termination without notice.
