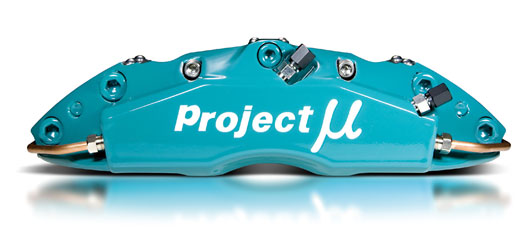

Rear caliper kit for drifting that controls the foot and parking brakes with one caliper.
With two opposing pistons for the foot brake on one side and two opposing pistons to control the hydraulic handbrake on the other, this caliper kit is designed specially for drifting. The friction material of the foot brake and handbrake may be replaced with different textures, thus enabling the braking system to be tailored for each driver's preferred braking sensation.
Total length : 282.8mm / Total width : 140.2mm ※ / Total height : 80mm
※Excludes the protrusion of the brake line attachment section.
- 鍛造製法
- リア専用タイプ
- デュアルブレーキ構造
- サーキット専用
| Materials, production methods | Aluminium alloy/Forged |
| Surface finishing | Hard alumite with powder coating |
| Piston diameter | 41mm |
| Rotor dimensions | 332×28mm, 345×28mm |
| No. of pads | 4Pads / 1Caliper （Foot brake：2Pads Hand brake：2Pads） |
| REAR | ¥346,500 （¥315,000 Excluding tax）〜 |
※1 This system cannot be used with the genuine (in-drum) handbrakes.
※2 This product does not include a handbrake lever, master cylinder or hydraulic line (between the master cylinder and caliper).
If you require any of these, please purchase separately.
※3 This product is designed for competitive drifting maneuvers. It is not made for use on public roads.
■CALIPER KIT
Calliper, Calliper Aluminium Bracket, Brake Pad, 2Piece Rotor, Teflon Brake line, All bolts
※ Foot brake pads included as a standard feature NS-C . And D1-spec hydraulic handbrake pads are included as standard. TYPE NS, D1 spec "R" pads are also available.
※When mounting, you must machine the genuine disc back plate.
Developed for Drifting, this budget drifting caliper holds both the foot brake and side brake. The kit comes with a 1 piece rotor and can supports cars with Rear Shoe OEM Side brakes.
Total length : 282.8mm / Total width : 140.2mm ※ / Total height : 80mm
※Excludes the protrusion of the brake line attachment section.
- 鍛造製法
- リア専用タイプ
- デュアルブレーキ構造
- サーキット専用
| Materials, production methods | Aluminium alloy/Forged |
| Surface finishing | Hard alumite with powder coating |
| Piston diameter | 41mm |
| Rotor dimensions | 345mm～350mm |
| No. of pads | 4Pads / 1Caliper （Foot brake：2Pads Hand brake：2Pads） |
※1 This system cannot be used with the genuine (in-drum) handbrakes.
※2 This product does not include a handbrake lever, master cylinder or hydraulic line (between the master cylinder and caliper).
If you require any of these, please purchase separately.
※3 This product is designed for competitive drifting maneuvers. It is not made for use on public roads.
■CALIPER KIT
Calliper, Calliper Aluminium Bracket, Brake Pad, 1Piece Rotor, Teflon Brake line, All bolts
※ Foot brake pads included as a standard feature NS-C . And D1-spec hydraulic handbrake pads are included as standard. TYPE NS, D1 spec "R" pads are also available.
※When mounting, you must machine the genuine disc back plate.
| CAR MODEL | ROTOR | PARTS No. / PRICE | |||
| MARKⅡ | JZX90/100 （TOURER V/ TURBO) |
REAR,1PIECE 345×28mm Straight / Eight slits |
FS44SB-T204R | ||
＊INNER SHOE 「IS103」 KIT |
¥316,800 （¥288,000 Excluding tax） |
||||
| SILVIA | S14/S15 | REAR,1PIECE 350×20mm Straight / Eight slits |
FS44SB-N210R | ||
＊Rear brake mechanism HCR32/ECR33/ER34 diversion vehicle |
¥305,800 （¥278,000 Excluding tax） |
||||
| SKYLINE | HCR32TM/ECR33/ER34 （TURBO) |
REAR,1PIECE 350×20mm Straight / Eight slits |
FS44SB-N204R | ||
| ¥305,800 （¥278,000 Excluding tax） |
|||||
Product specifications, prices, manufacture and sales are subject to change or termination without notice.
