RACING CALIPER 2Pistons REAR

RACING CALIPER 2Pistons REAR

High-performance rear dedicated model designed for strengthening rear brake places emphasis on balance with front brake.
Total length : 188.0mm / Total width : 144.2mm ※ / Total height : 50.0mm
※Excludes the protrusion of the brake line attachment section.

  • 車検対応品
  • リア専用タイプ
  • 削り出し製法
Materials, production methods Aluminium alloy/Billet

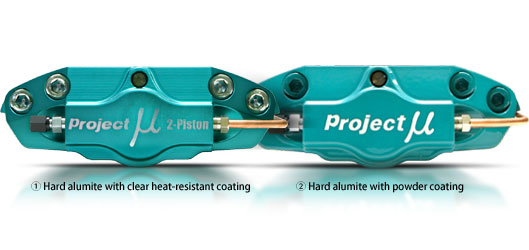

Surface finishing ①Hard alumite with clear heat-resistant coating
②Hard alumite with powder coating
Piston diameter 41mm
Rotor dimensions Please check the MATCHING LIST
No. of pads 2Pads / 1Caliper

※NS-ZERO pads are included as standard. TYPE NS, TYPE HC-CS, TYPE HC+, RACING-N1, RACING777 and RACING999 pads are also available.
※You can select caliper surface treatment from between powder coat and alumite, so you can provide a uniform appearance with the front caliper.
※When mounting, you must machine the genuine disc back plate.

■CALIPER KIT
Calliper, Calliper Aluminium Bracket, Brake Pad (for Street) , Rotor（※1）, Teflon Brake line (for rear) , Pad Support Spring, All bolts
※1 Rotors not included by the model.


マッチングリスト　各種製品の車種別適合表はこちらから

Product specifications, prices, manufacture and sales are subject to change or termination without notice.
