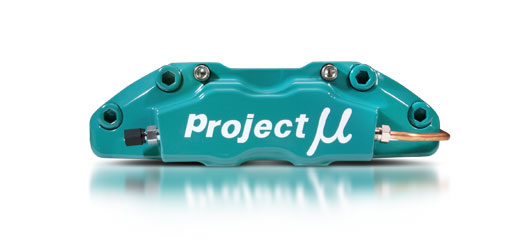

Forged 4-piston caliper kit is the ideal size for compact cars.
Total length : 220.0mm / Total width : 120.5mm ※ / Total height : 61.2mm
※Excludes the protrusion of the brake line attachment section.
- 車検対応品
- 鍛造製法
| Materials, production methods | Aluminium alloy/Forged |
| Surface finishing | Hard alumite with powder coating |
| Piston diameter | 35.5mm |
| Rotor dimensions | 282mm×21mm |
| No. of pads | 2Pads / 1Caliper |
| FRONT | ¥255,000 |
※NS-ZERO pads are included as standard. TYPE NS, TYPE HC-CS, TYPE HC+, RACING-N1, RACING777 and RACING999 pads are also available.
■CALIPER KIT
Calliper, Calliper Aluminium Bracket, Brake Pad, 2Piece Rotor, Teflon Brake line, Pad Support Spring, All bolts
RED [WHITE LOGO]
ORANGE [BLACK LOGO]
YELLOW [BLACK LOGO]
SILVER [BLACK LOGO]
BLACK [WHITE LOGO]
| Surface finishing | Powder coating with clear heat-resistant coating |
| Date of delivery | In about 30 days |
| PRICE (Kit) | KIT PRICE + ¥30,000 |
● The color of bell housing are only black.
● These images might be different from real color.
Product specifications, prices, manufacture and sales are subject to change or termination without notice.
-
RACING CALIPER 2Pistons REAR
Fブレーキとのバランスを重視しリアブレーキ強化の為に設計した高性能リア専用モデル。
-
RACING CALIPER 4Pistons×4Pads
We offer the ideal configuration of one pad per piston through eight synchronized pads, thus enabling optimal braking. Our racing calipers are made from machined super-hard aluminum (this method known as “billeting”), and the use of hard alumite on the surface serves to highlight the beautiful form.
-
RACING CALIPER 6Pistons
The ultimate model: this item features a high-strength body cut from aluminium, unadulterated high performance and quality, as well as braking capability.
-
FORGED SPORTS 4Pistons SLIM
Designed for light to mid-weight vehicles.
-
FORGED SPORTS 4Pistons×4Pads SLIM
The slim body greatly reduces caliper interference with the wheels, thus making the 4Pistons×4Pads SLIM model ideal for customizing.
-
FORGED SPORTS 6Pistons SLIM
The 6 Pistons SLIM caliper combines the popular forged slim-body design with incredible stopping power.
-
FORGED SPORTS 4Pistons×4Pads SIDE-B
Rear caliper kit for drifting that controls the foot and parking brakes with one caliper.
